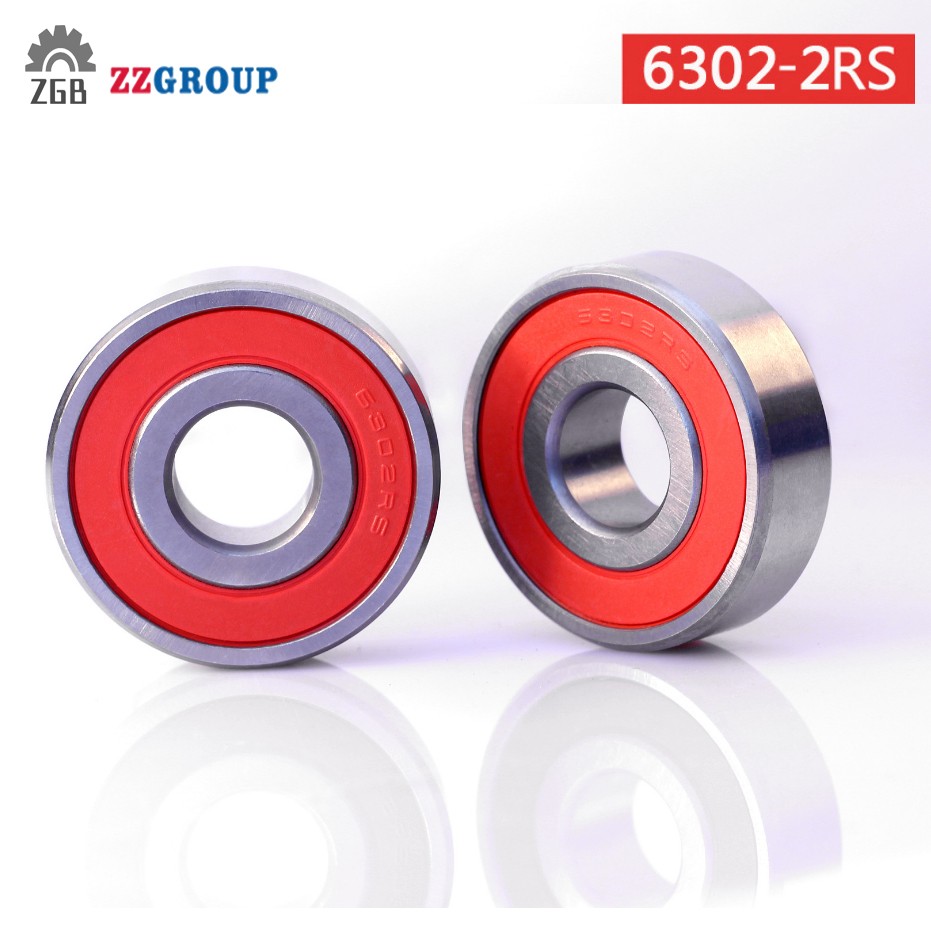

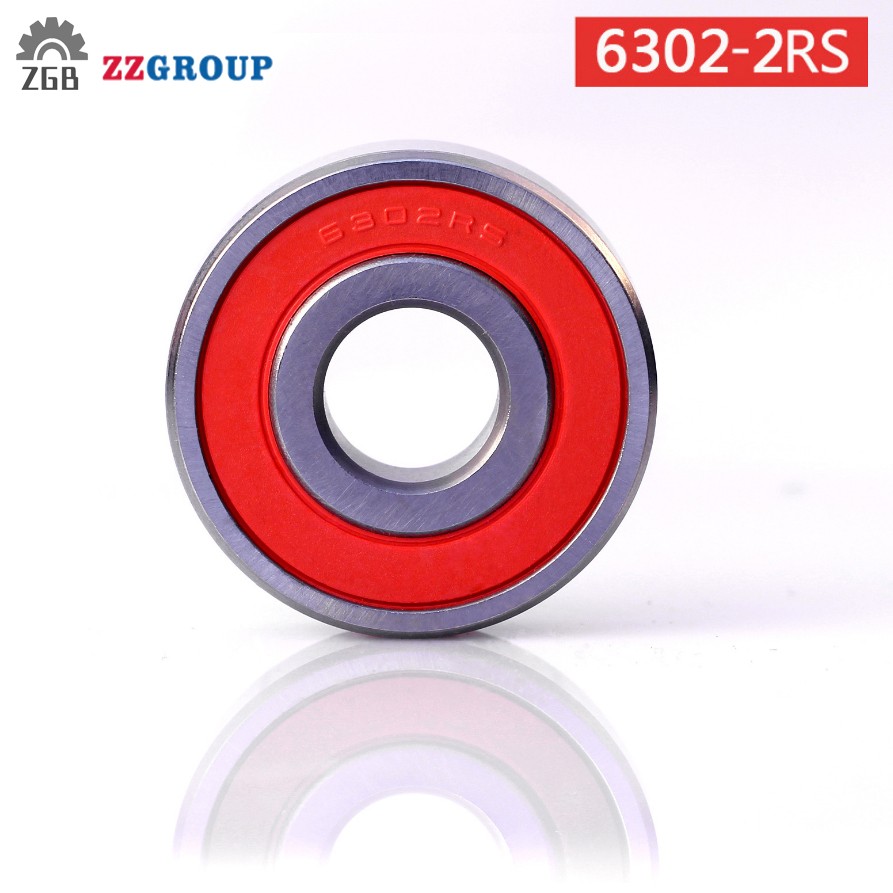

6302-2RS ball bearing with red seals

ZGB bearings’ optimized seal structure and clearance, customized grease reduce the cost of the maintenance. ZGB knows that the slow speed makes difficult between rolling elements and raceways. In addition, the rolling bearings in continuous transferring processes are continuously exposed to extremely heavy loads. We have a variety of appropriate and high quality greases to prevent bearings’ metal-to-metal contact. What is more, our optimized seal structure prevents the bearings from the threat of cooling water entering into the bearing cavity, which can dilute the lubricant and corrode the bearing.
Bearing Model
6302-2RS car bearing
Clearance
C3
Rotation Speed
20000 rpm
Inner Diameter
15 mm
Working Temperature
-40℃~~180℃
Outer Diameter
42 mm
Rated dynamic load
8.8 KN
Width
13 mm
Rated static load
5.4 KN
Chamfer
1 mm
Material
Gcr15
Net Weight
0.082 kg
Package



250 pcs/carton
