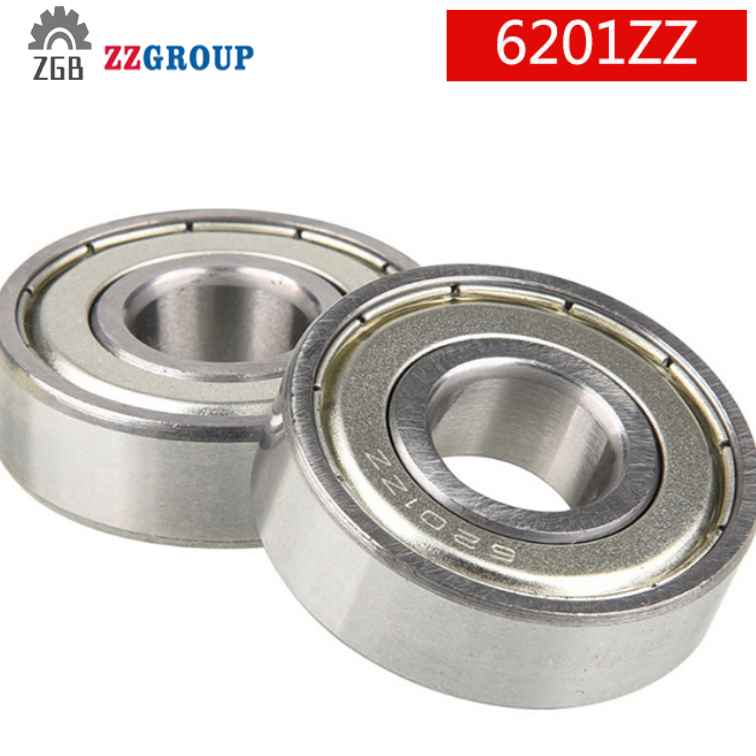

6201ZZ ceiling fan bearings

Bearings in fans and blowers often operate at high speed and relatively light radial loads. They are usually metal-shielded. In order to maintain vibration levels within acceptable limits, the internal radial clearance is optimized to suit operating conditions. The bearings need to conform to the specific technical requirements of high cooling efficiency and long service life.
Bearing Model
6201ZZ ceiling fan bearings
Clearance
C0
Rotation Speed
28000 rpm
Inner Diameter
12 mm
Working Temperature
-40℃~~200℃
Outer Diameter
32 mm
Rated dynamic load
7.28 KN
Width
10 mm
Rated static load
3.14 KN
Chamfer
0.6 mm
Material
Gcr15
Net Weight
0.036 kg
Package



500 pcs/carton
