6004-2RS electric motor bearings

It goes without saying that social demands for automobiles will continue to rise. ZGB would focus on intelligent, modulated, innovative technologies to meet the increasing demands for the future. Innovation continuously increases the standard of technically based products. Keep updated is critical for automobile transmission manufacturers. We offer our customers perfectly coordinated system solutions. This means that you receive drives and bearing supports from one source and can therefore benefit from entirely new opportunities in performance and design.
Bearing Model
6004-2RS electric motor bearing
Clearance
C3
Rotation Speed
18000 rpm

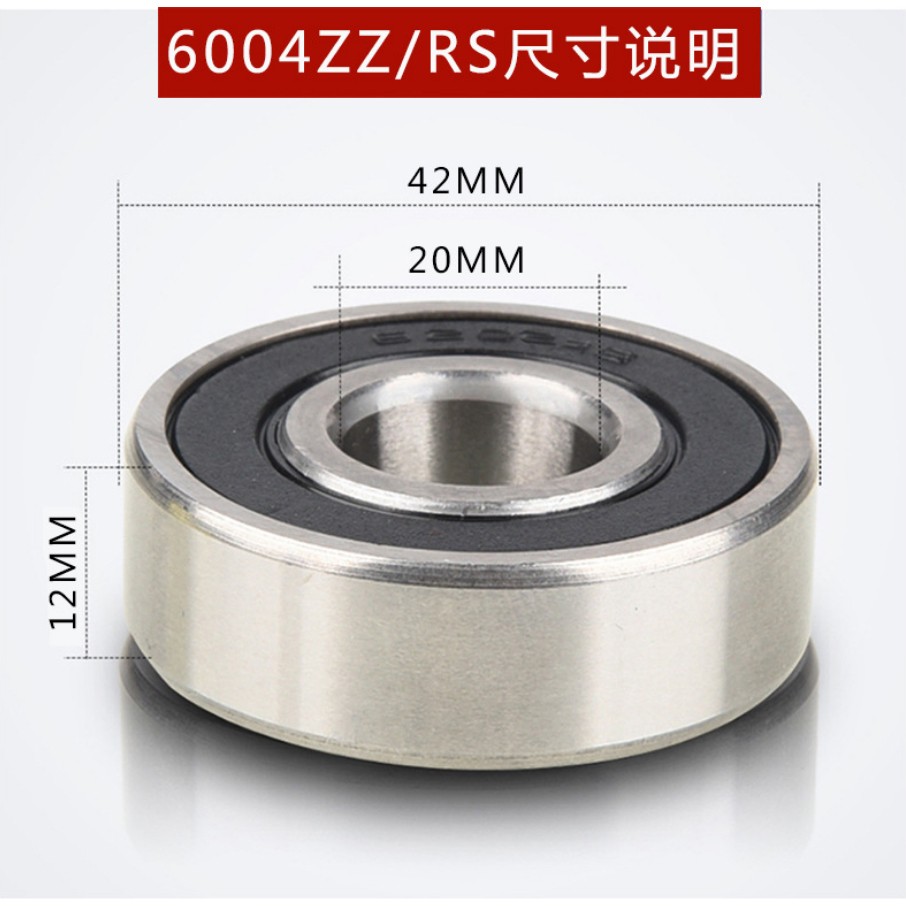

Inner Diameter
20 mm
Working Temperature
-40℃~~180℃
Outer Diameter
42 mm
Rated dynamic load
9.38 KN
Width
12 mm
Rated static load
5.03 KN
Chamfer
0.6 mm
Material
Gcr15
Net Weight
0.069 kg
Package



400pcs/carton
